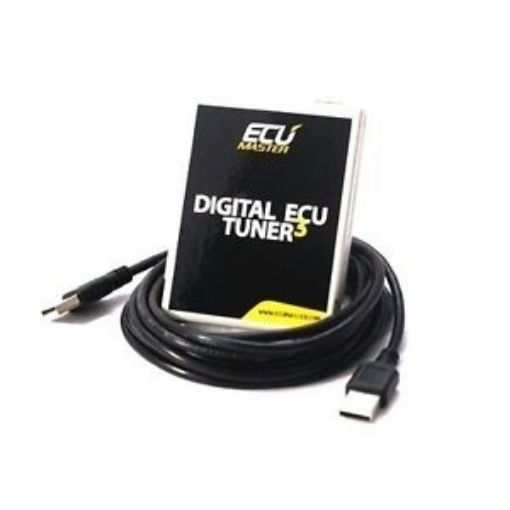

DET3 - ECU master - "Piggy back" motorstyring

Digital ECU-mottaker 3 fra ECU-masteren, er en "piggy back" motorstyring med innbygget 400 KPA mapsensor.

Last ned manualen

Technical details:

•  four 16x16 side tables (fuel map,two PWM tables, ignition table)

•  8 Correction tables 16x1,

•  2 independent switchable map sets ,

•  possibility modification of one analogue signal

• 4 analogueinputs,

• inbuilt Data Flash – possibility of logging without connected PC,

• battery voltage monitoring ,

• support of frequency output air flow meter (possibility of signal modification) 17Hz-4kHz,

• support VR and Hall effect crank sensors together with ignition modules pulse. Device supportbothsingle ended and differential signals,

• supports a lot of crank trigger patterns :60-2, 36-2, 36-1, Multitooth, Ignition Modules and more,

• support of waste gate valve,

• output for 4 saturated injectors ("full group"),

• ON/OFF parametricoutput,

• automatic conversion of MAP to MAF with the use of the learning algorithm,

• launch control,

• road dyno,

• possibility individual calibration of each analogue sensors – device displayed values with correct units,

• free firmware update – new crank trigger patterns and new functionality,

• fuel Implant mode –possibility of drive injectors in standalone mode (batch fire),

• USB communication no additional interface needed
