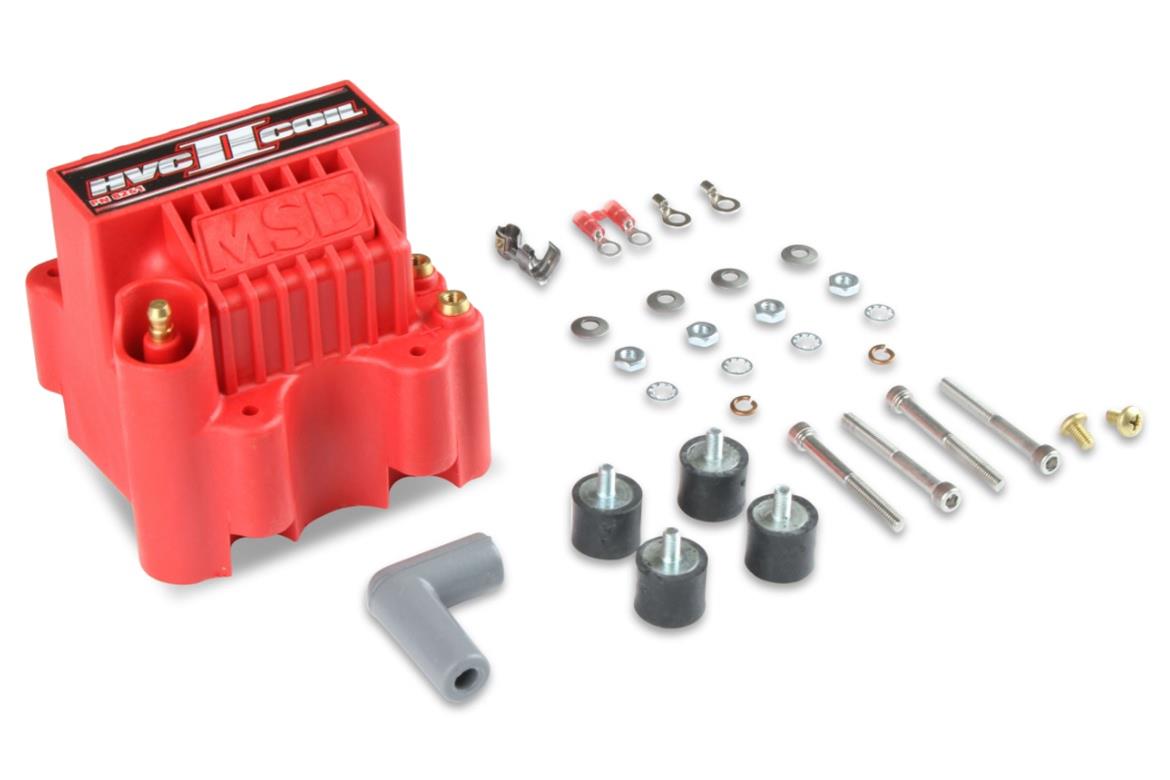

MSD HVC-2 Coils 8261

Produsent: All IN Performance

Vær den første til å anmelde dette produktet

Ignition Coil, Blaster HVC-2, U-Core, Drag Race, Square, Epoxy, 45,000 V

Sku: 1.00129.03-8261

Lagerstatus 2 på lager

Stock status explained
In stock	We have this item in our warehouse
Out Of stock	We do not have this item in our warehouse but we can order it for you
On the way to us	We ordered this item for expected delivery and quantity please see above

kr 4.764,50 (NOK) eksl mva

Antall:

i h

Overview
Reviews
Contact Us

MSD HVC-2 coils utilize an iron U-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material. That means it has incredible dielectric capabilities at high temperatures. The housing features far-spaced brass primary terminals, and a well-protected secondary tower for increased spark isolation. HVC-2 coils are designed for use with MSD 7 Series ignitions.

Primary Resistance:

0.016 ohms

Secondary Resistance:

30.00K ohms

Maximum Voltage:

45,000 V

Inductance:

0.25 mH

Peak Current:

2 amps

Spark Duration:

150 uS
